Description

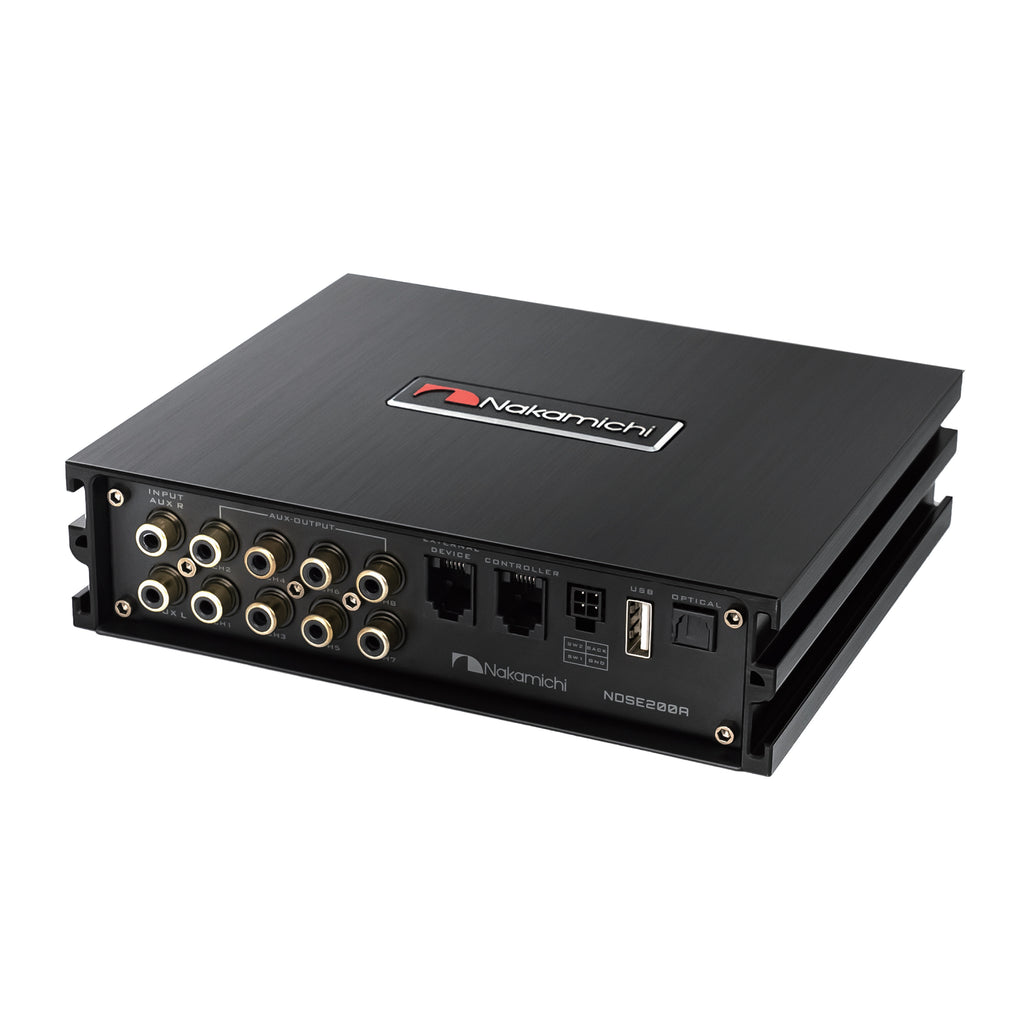

NDSE200A
8 Channel Digital Signal Processor With Built-In Amplifier
SPECIFICATIONS：
Input: 4CH High-Level, 2CH Low-Level
Output: 8CH Low-Level, 4CH High-Level
USB Playback: Support
BT Music: Support
Phone APP Control: Support
Working Voltage : 9V-16V
Working Temp: -20℃~+60℃
Maximum Current: 60A
Standby Current: 5mA
Product Size: 173x146.5x43mm
Output Gain: -60dB~+6dB
EQ Band: 31 band / 8CH
EQ Gain: -12dB~+12dB
Q Vale Range: 0.3~50dB
Channel Delay: 0~25ms
Delay Accuracy: 0.01ms
Slope: 0~48dB/Oct
Harmonic Distortion: ≤0.05%
SNR: ≥98dB
N-Power: 4x50W@4Ω
Product Weight: Approx 1.2kg
*By request/order.
