Description

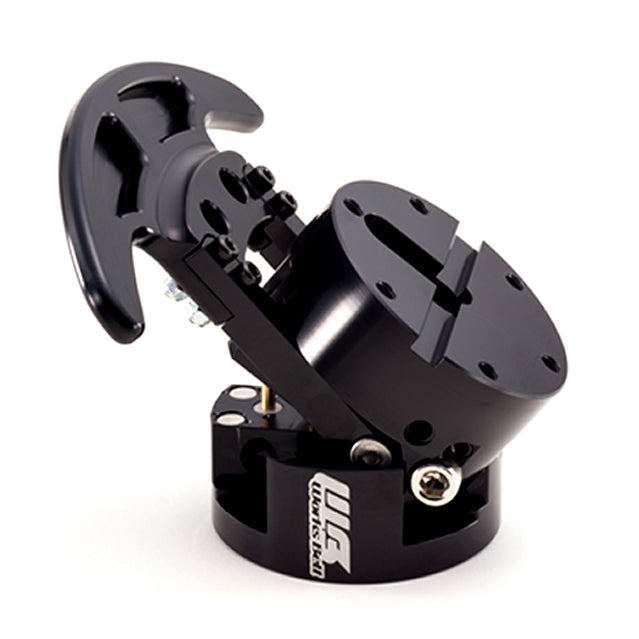

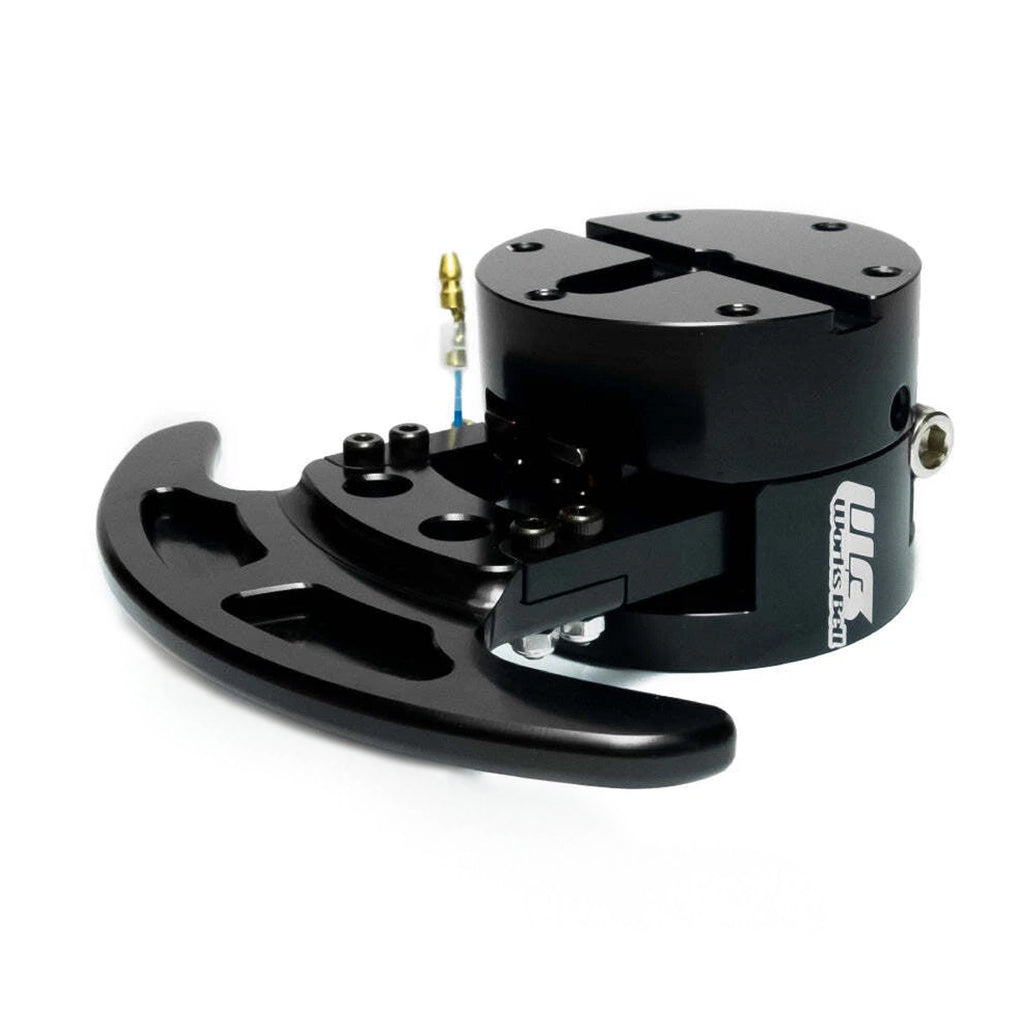

RAPFIX GTC-R
Usage: For competition vehicles
Steering wheel used: For competition (PCD 50.8mm 6 holes)
Vehicle mounting method: PCD50.8mm M5×P0.8 female thread setting
Main Structural Material: Aluminum Alloy A2024T4, Ball = Steel SUJ2
Dimensions: Length 46.5mm Diameter 60mm (basic diameter)
Flat shape: Width 120mm Depth: 111.6mm
Weight: 395g
By pulling the newly designed large lever specifically designed for competition, the plug on the vehicle side and the socket on the steering wheel side part tilt up. It is equipped with a suspend function that stops at any angle and a hold function that eliminates the need to operate the lever again when tilting down.
When tilting down, simply hold the steering wheel and tilt it down, and the two indentations engraved into the plug and the tapered hole provided in the socket are fitted with precision steel balls for ball bearings. It is fully coupled by the force of the coil spring loading on the sleeve arm.
Using the ball lock system established in the Rafix series, smooth hinge opening and closing and locking without shaking are realized.
Eliminated the problem of rattling and wear. It greatly contributes to the driver's severe steering wheel operation.
*Attention Before Purchase.
This product is exclusively for competition cars. Please note the following items.
・It is not "vehicle inspection correspondence".
・MOMO and NARDI horn buttons cannot be attached.
- It cannot be directly mounted on a normal-sized PCD (MOMO=70mm, NARDI=74mm). You will need a 3-6 hole conversion adapter sold separately.
・It cannot be attached directly to the standard boss or short boss. Please contact us for details.
・For other product characteristics, shapes, and mounting holes, please refer to the "Instruction Manual" and "Product Schematic Diagram" for details, and consider the mounting method before purchasing.
*By request/order.
