Description
WINCH KIT
Rated Line Pull: 12,000 LB | 5,443kg
Rope: 11mm x 79 FT Grey Synthetic

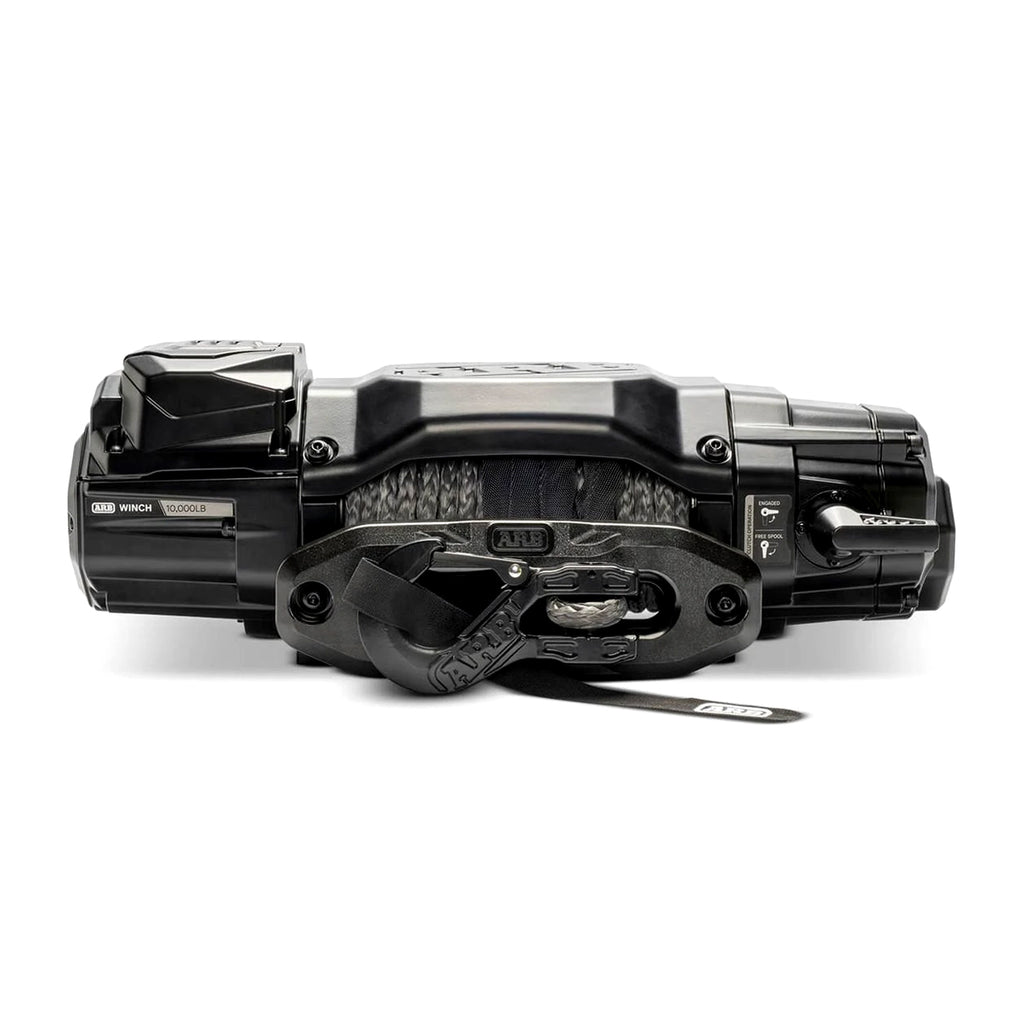

Fairlead: Forged 6061 Aluminum Hawse Fairlead
Fitted Weight: 76 LB | 34.5kg
Max. Line Speed: 65 FT / MIN
Motor: 5.7 HP
Electrical Contactor: Albright DC Contactor – 500 Amp
Brake: Gearbox Mounted 100% Load Holding Proportional Friction Brake
Gearbox: 171:1 2-Stage Planetary and 2-Stage Spur
Waterproof Ratings: IP68 Winch Motor and Gearbox

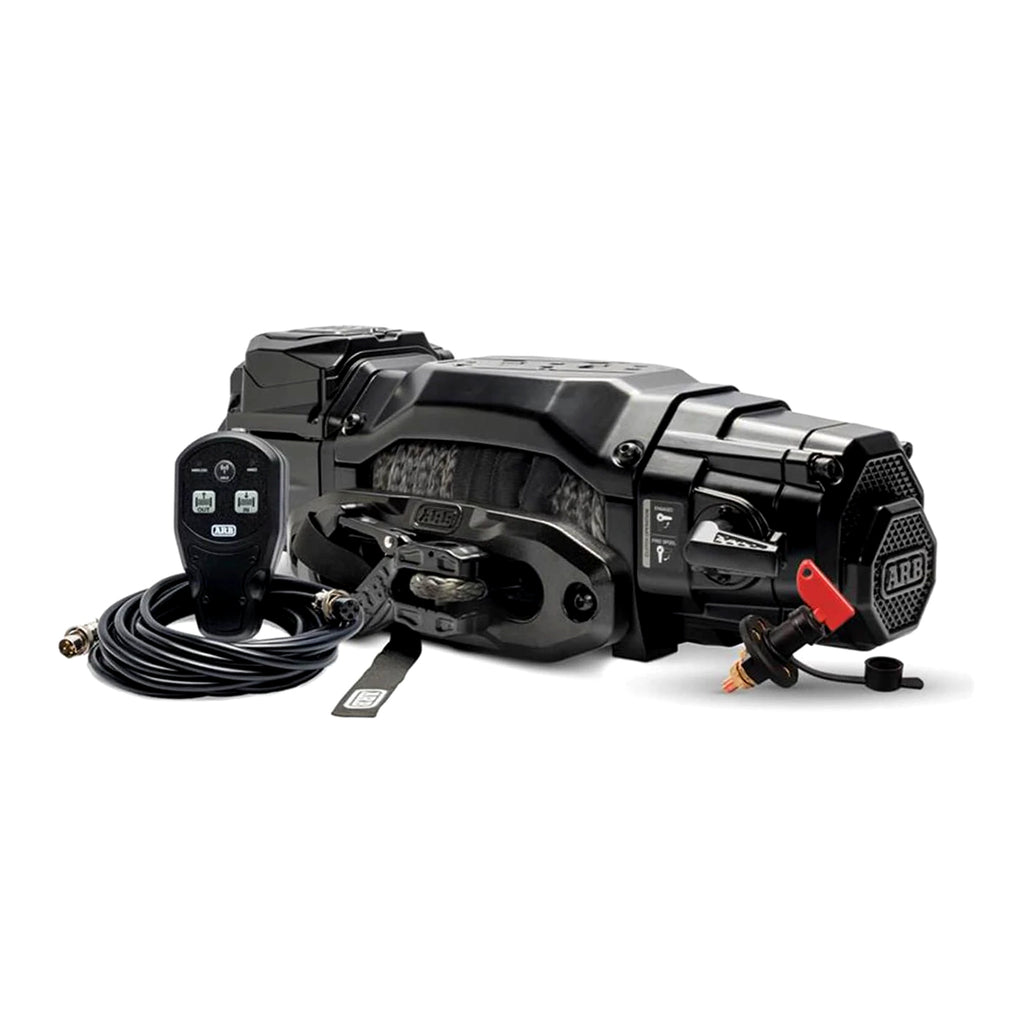

Includes: Main Power Isolation Switch and Remote Mounted Control Plug
Warranty: Limited Lifetime Warranty and 7-Year Electrical Warranty
The next generation of winch technology arrives with a compact, all-in-one motor control design that delivers clean fitment and smooth, reliable operation. Built with top-tier components and validated through rigorous performance testing, the integrated motor control unit sits within the winch itself, allowing it to work seamlessly with modern bumpers and vehicle sensors.
Features & Benefits
The ARB Winch features a custom Albright contactor that connects directly to the motor. This improvement increases efficiency and removes the need for a bulky control box.
A 500A isolation switch with universal mount is included with the ARB Winch. It comes complete with a stainless lanyard and dust cover for safe and reliable operation.
Gearbox-mounted brake ensures 100% load holding and allows powered unspooling under no load without damaging the winch, easing unspooling efforts.
4-Stage Gearbox with hardened steel gears provides superior load distribution with, the 171:1 ratio allows for fast line speed while maintaining pulling power.

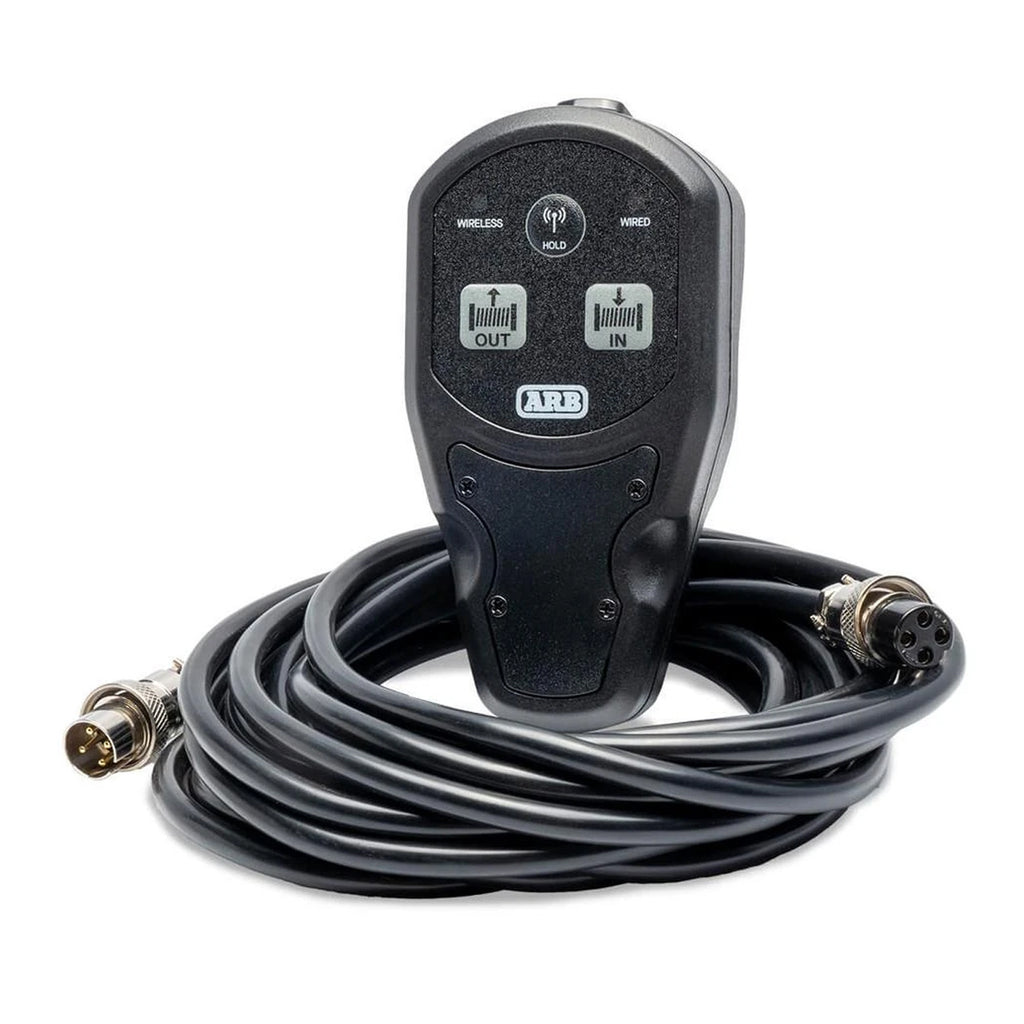

Dual connection remote with 2.4GHz wireless with sealed receiver circuitry for a stronger, secure connection eliminating interference or remote conflict.
Remote mounted control plug for low profile or hidden winch mounting without losing the ability to hardwire the controller.
One piece bridging plate offers greater torsional strength.

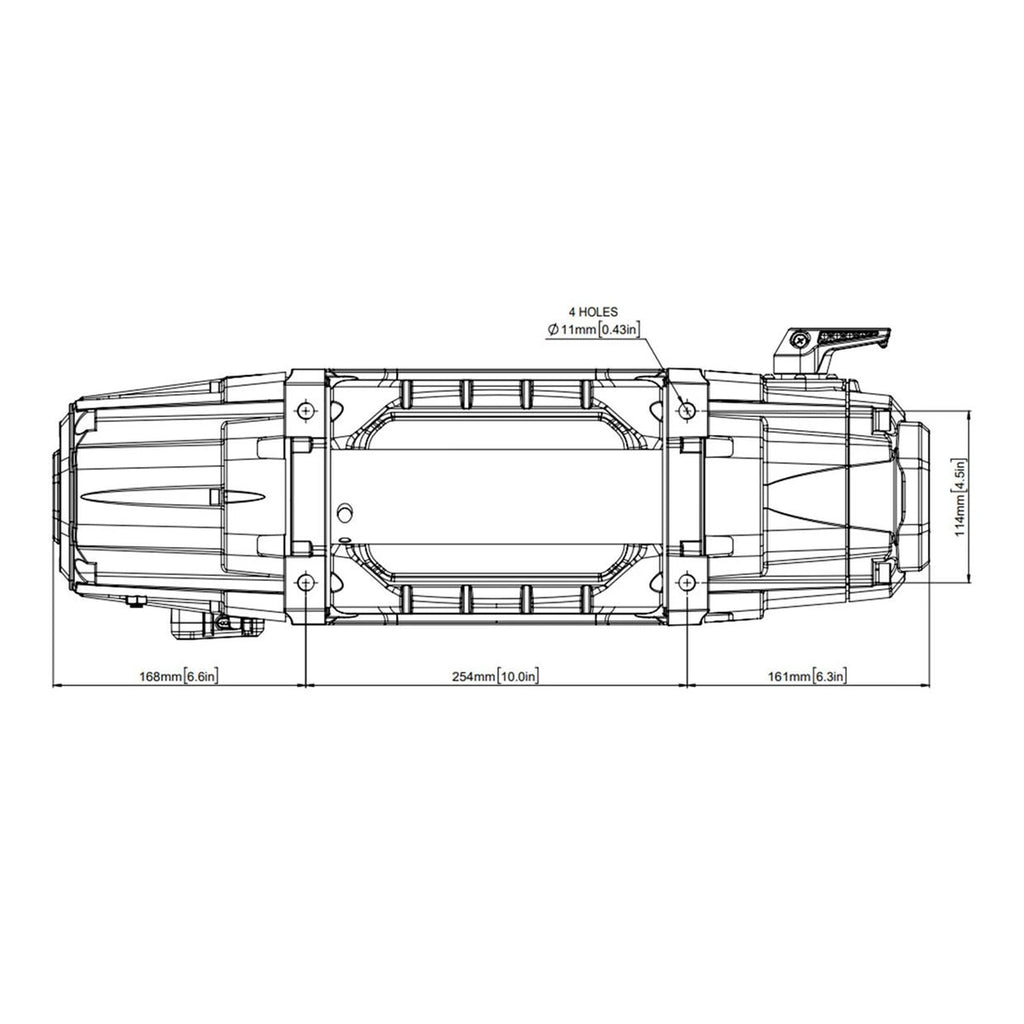

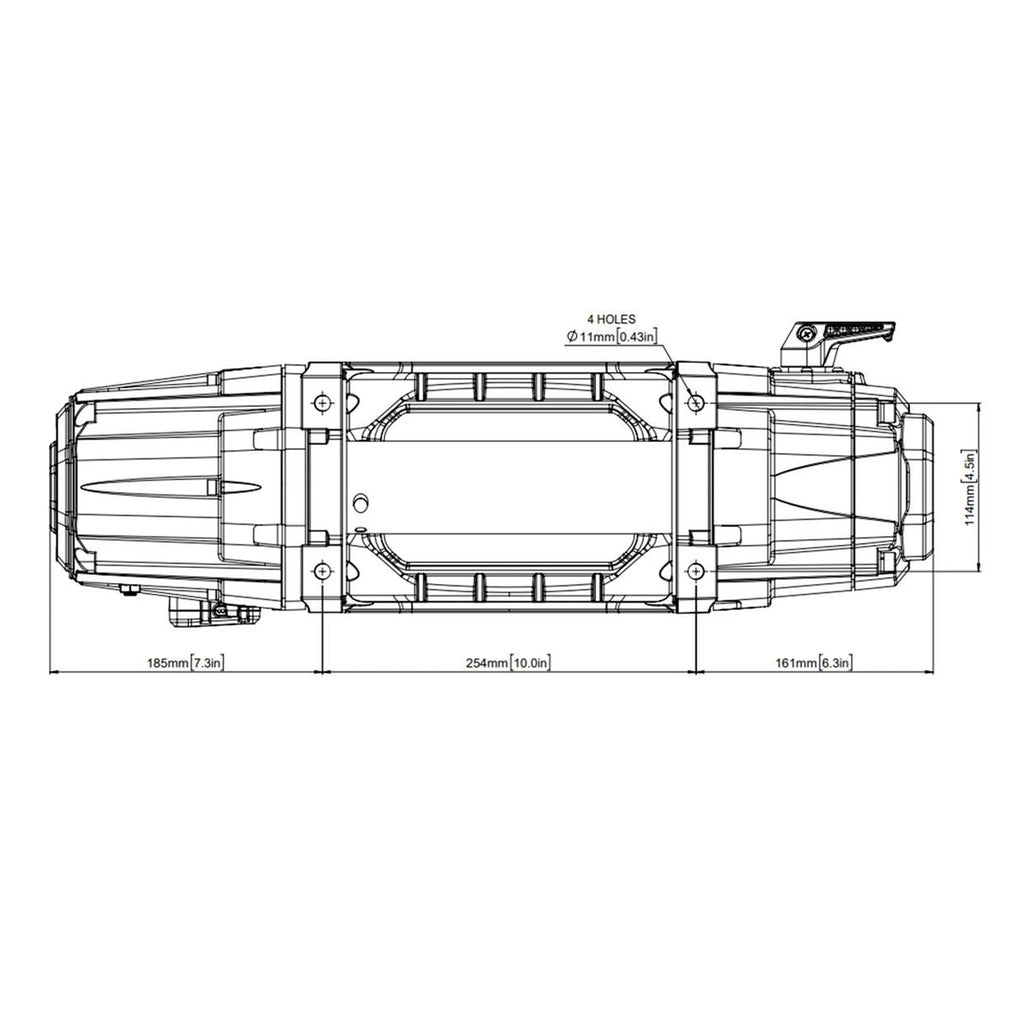

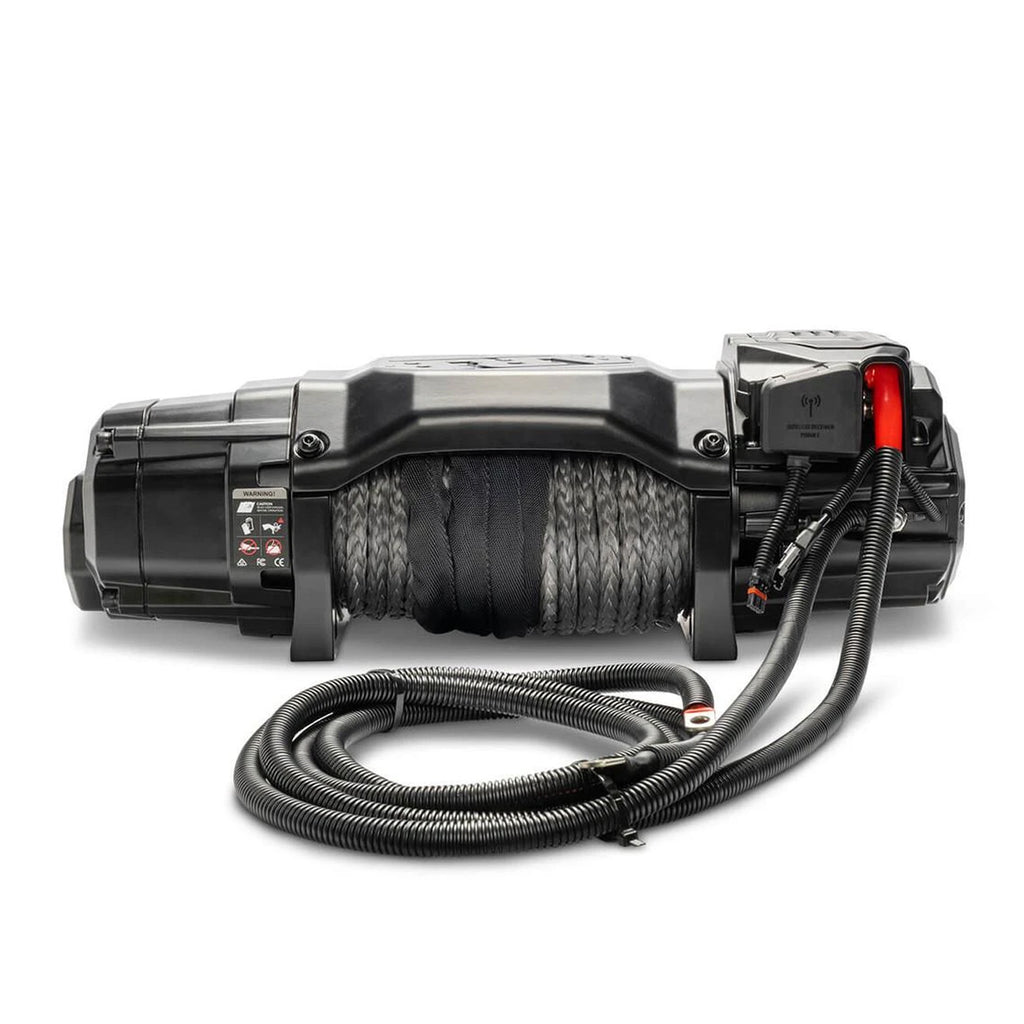

Prewired connections, versatile mounting options, and preset clutch positioning allow for fast and hassle-free installation. 16 positions (22.5 deg) for clocking the clutch handle for more installation options.
*By request/order.
