Description
STAGE GT50011
High-Performance Mono Class-D Car Amplifier in a Compact Size
The JBL STAGE GT 50011 Amplifier is a High-Performance Mono Class-D Subwoofer Amplifier designed to meet all of your subwoofer needs, with a suite of advanced engineering features to tune and optimize system performance for the ultimate listening experience. This compact amplifier is equipped with all the important inputs and user controls including a bass EQ with boost and q factor adjustments as well as LPF crossover control for tailoring sound to suit the characteristics of your vehicles.
Great Performance at an Affordable Price
JBL STAGE GT Amplifiers provide true JBL performance at an affordable price while having the features you need to properly fine tune and optimize you audio system performance.
Compact Footprint
JBL STAGE GT Amplifiers have everything you need to create a quality audio system with the flexibility of mounting it in tight spaces.
Full On-Board Protection
JBL STAGE GT Amplifiers are engineered with on-board circuitry to protect them from shorts, overheating, overvoltage and undervoltage.
Star/Stop Compatible
JBL STAGE GT Amplifiers seamlessly integrate with vehicles featuring start/stop engines, ensuring consistent audio performance no matter where your journey leads you.
Wide Input Sensitivity Range
Including speaker-level inputs from 1Vrms to 25Vrms, and low-level inputs from 200mVrms to 5Vrms let JBL STAGE GT Amplifiers integrate with almost any audio input.
Adjustable Bass EQ
The adjustable bass EQ level from 0dB to 12 dB, frequency from 30Hz to 100Hz and width narrow to wide, serving as a great tool to optimize subwoofer and loudspeaker performance based on location and enclosure type.
OEM Load Detect Compatible
The OEM load detection system ensures compatibility with factory head units that require specific resistance for optimal operation. This feature enhances compatibility without the need for extra hardware, streamlining the installation process.

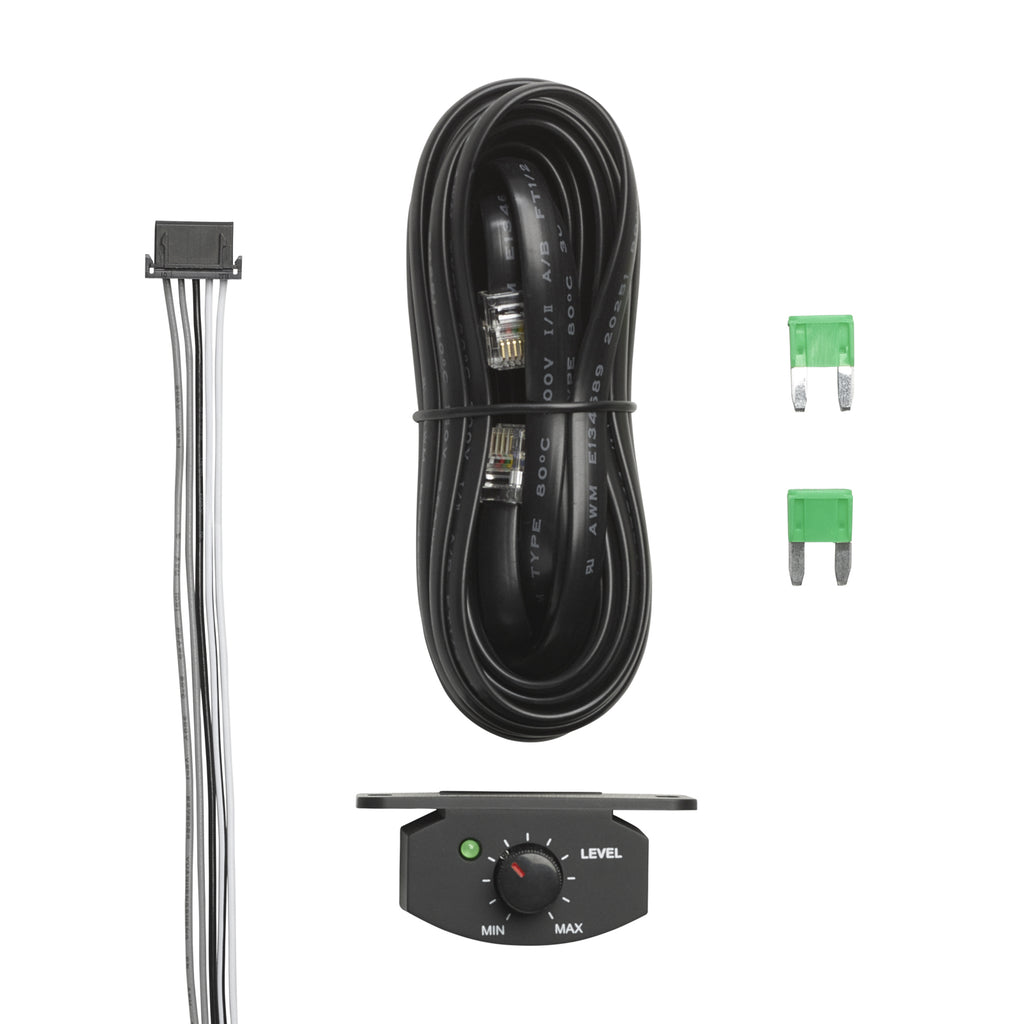

Convenient Bass Control
Dial in the perfect bass. The Remote Bass Control allows easy adjustments of your bass from the vehicle’s front seat. The RBC is simple to connect via a telephone-style connection, and can be mounted in a variety of positions to suit your preference.
Specifications
Max Power: 1220W peak
Power Output: 500Wrms x1 @2ohms
Power Output: 300Wrms x1 @4ohms
Frequency Response: 10Hz - 320Hz±1dB
THD+N@ROP:1%
Input Sensitivity LOW: 0.2V - 5V, HIGH
Bass EQ Level: 0dB to 12dB
Bass EQ Width: Narrow - Wide
Bass EQ Freq: 30Hz - 100Hz
Phase Control: 0°- 180° Variable
Low Pass Filter 32Hz - 320Hz
Protection: DCP, OVP, UVP, OCP, OTP
Operating Voltage: 9V - 16V
Fuse Rating: 30A x 2
*By request/order.
